JK BMS 1A 2A Active Balance Lifepo4 BMS 8S 16S 24S 100A 150A 200A 500A Smart Board with Bluetooth
JK BMS 1A 2A Active Balance Lifepo4 BMS 8S 16S 24S 100A 150A 200A 500A Smart Board with Bluetooth
Regular price
$83.86 USD
Regular price
$119.79 USD
Sale price
$83.86 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
If you need to purchase a BMS, please send us a message, and we will tailor a BMS solution for you and provide the best price!
|

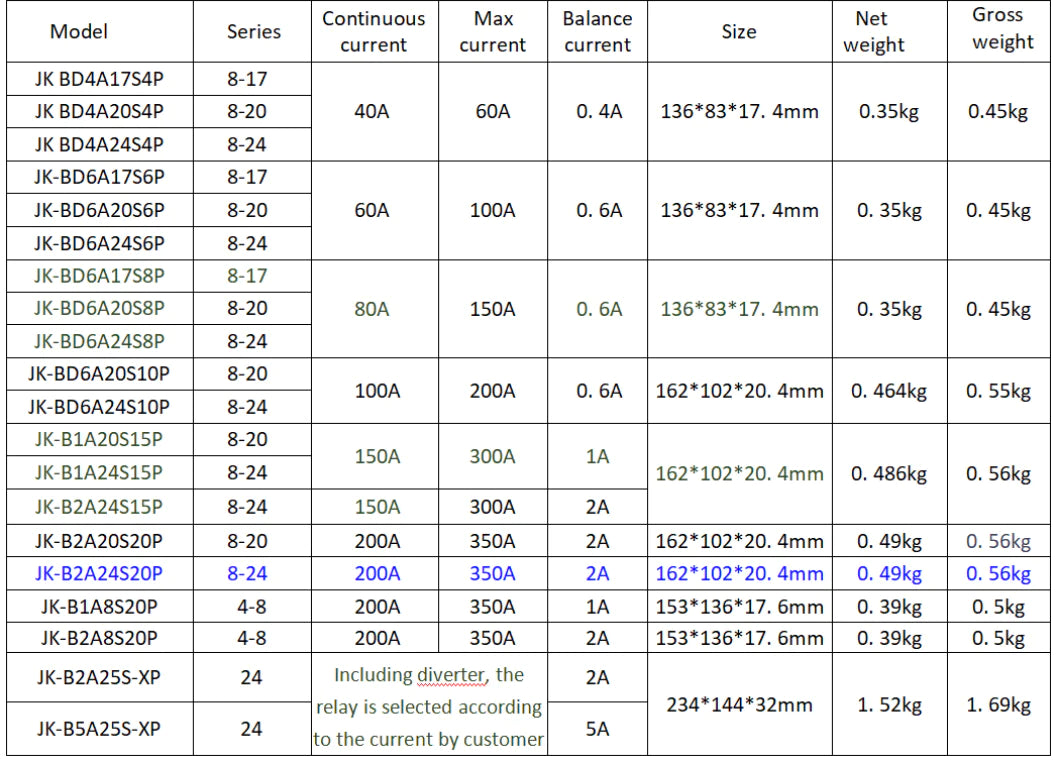

Model Number
|
JK bms
|
|
Place of Origin
|
China
|
| Apply to |
Lifepo4/LTO/Li-ion
|
|
Brand Name
|
JK
|
|
Base Material
|
aluminum
|
|
Copper Thickness
|
1mm
|
|
Board Thickness
|
17.8mm-20.4mm
|
|
Min. Hole Size
|
<1mm
|
|
Min. Line Width
|
<1mm
|
|
Min. Line Spacing
|
<3mm
|
|
Surface Finishing
|
Three-layer anti-coating
|
|
Board Size
|
135*83*17.6mm/162*102*20mm
|
|
Product name
|
Jk Bms
|
|
Communication
|
RS485/CANbus/UART/Bluetooth(not for inverter)
|
|
MOQ
|
1pc
|
|
Discharge current
|
40A 60A 80A 100A 150A 200A
|
|
Apply to
|
Lifepo4/LTO/Li ion Battery Pack
|
|
Voltage
|
24v-96v
|
|
With App
|
YES
|
|
Cerficate
|
CE
|
|
Material
|
aluminum
|
|
Customize
|
YES
|

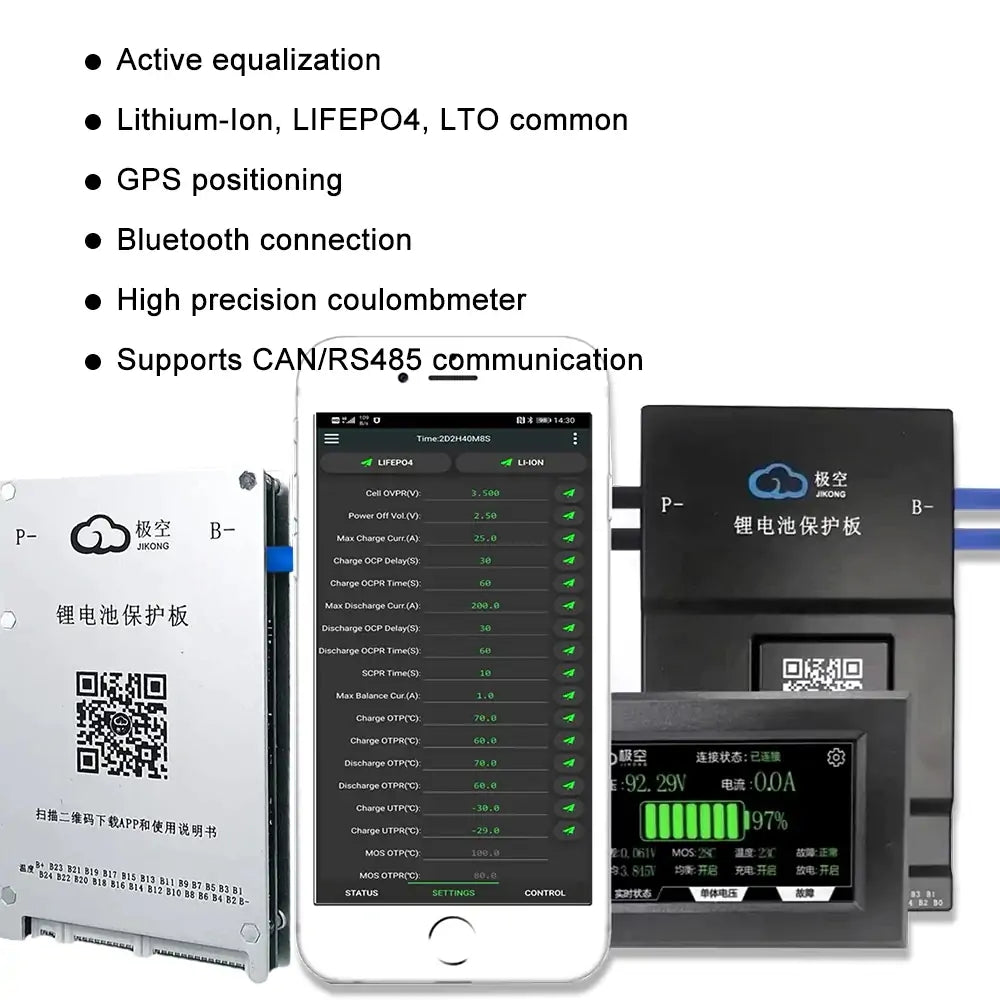

Why Choose JK BMS

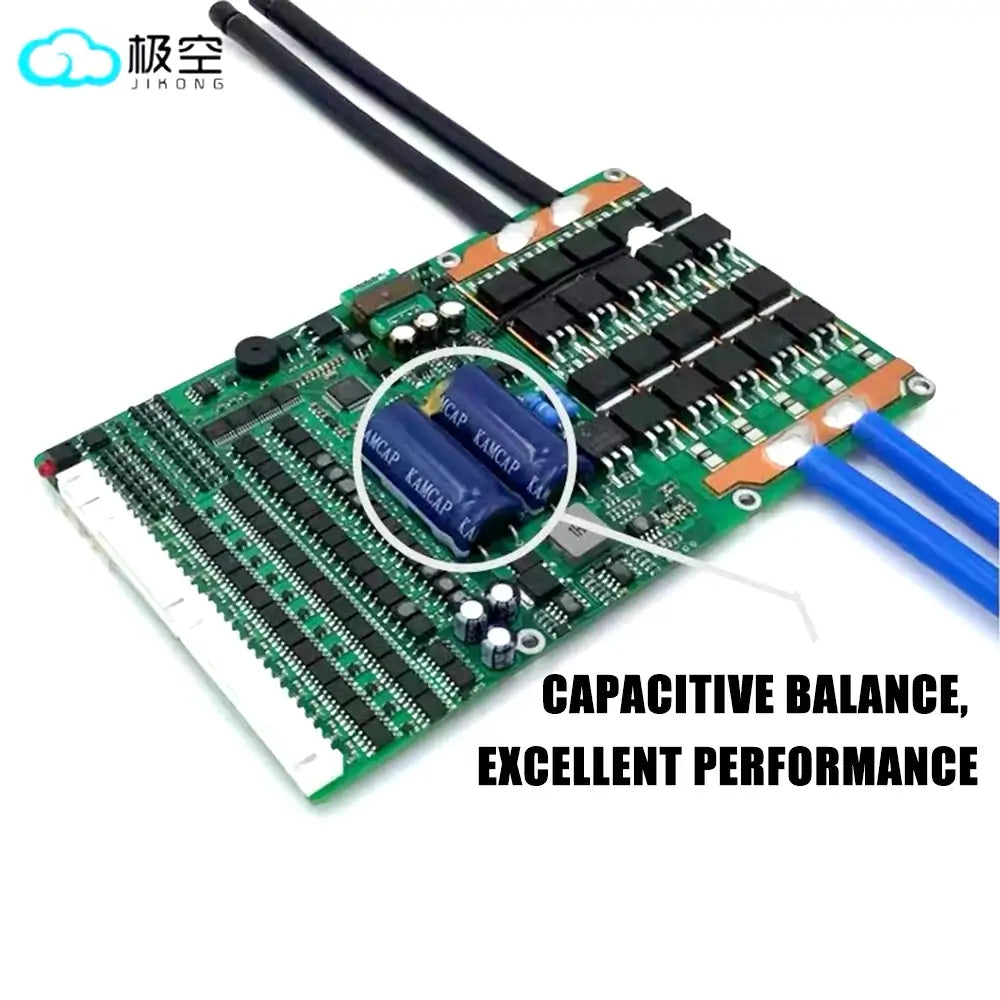

1.Active balance functionality, no need to lose the battery capacity to balance the voltage difference of cells, raise the battery usage efficiency for 95%
2.It has the protections of Over-charge/Over-discharge/Over-current and Short circuit Over-temperature protection etc...
3.Single battery series voltage range is 1~5V, the precision is 5mV
4.With the function of coulomb meter, the remaining power is very clear

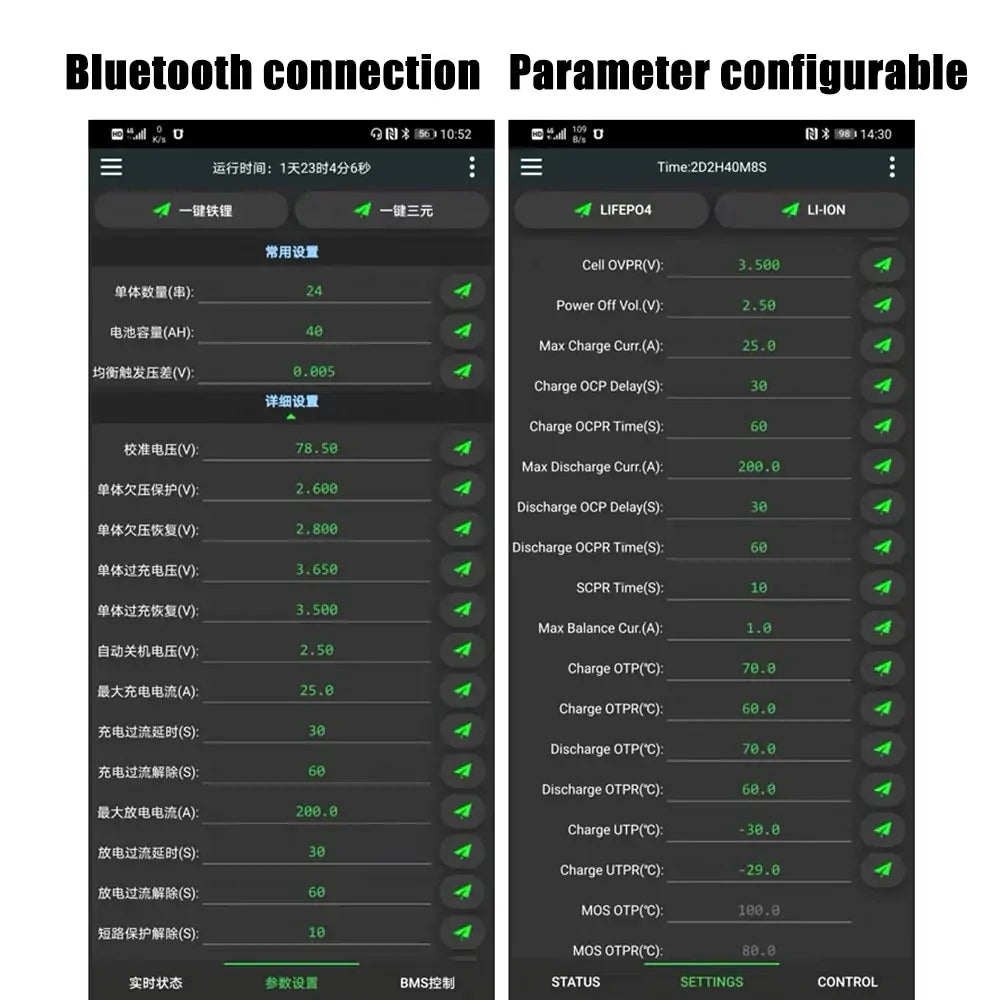

5.BT communication function, the battery status can be displayed on APP
